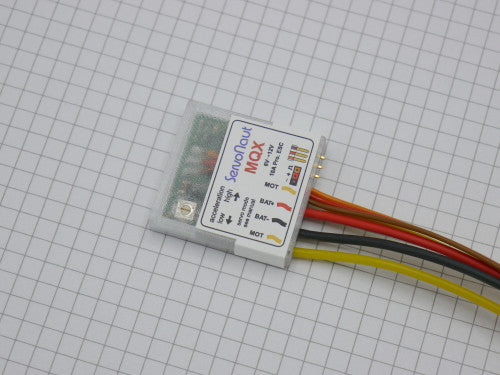

Servonaut MQX Speed Controller for Auxiliary (Actuating) Drives and Servos

Servonaut MQX Speed Controller for Auxiliary (Actuating) Drives and Servos

Designed for auxiliary and actuating drives as well as servos, this robust speed controller supports power sources ranging from 5 to 10 cell NiMH batteries and 2S or 3S LiPo packs.

Features:

• Seamless EMF braking for smooth and precise control

• Maximum current: 12A continuous output

• High-frequency 16 kHz switching for quiet and efficient operation

• Functions as an adjustable motor controller with limit switch inputs

• Can be used as a servo controller (requires an additional 2k or 5k potentiometer, see manual)

• Diagnostic LEDs to display status and error codes for easy troubleshooting

• Built-in protection against overcurrent, overheating, and undervoltage

• Compact dimensions: 36 x 33 x 8 mm³

Note: This unit does NOT include a Battery Eliminator Circuit (BEC).
