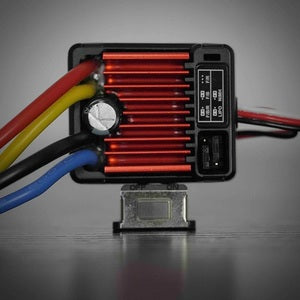

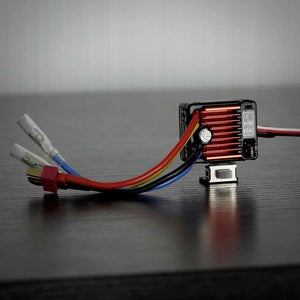

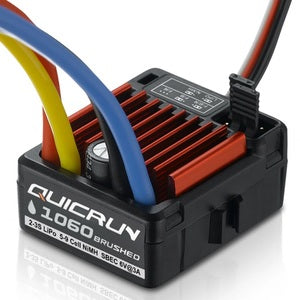

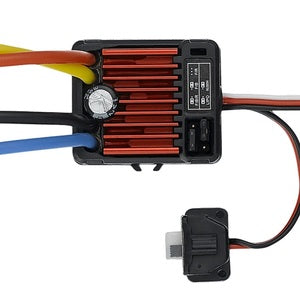

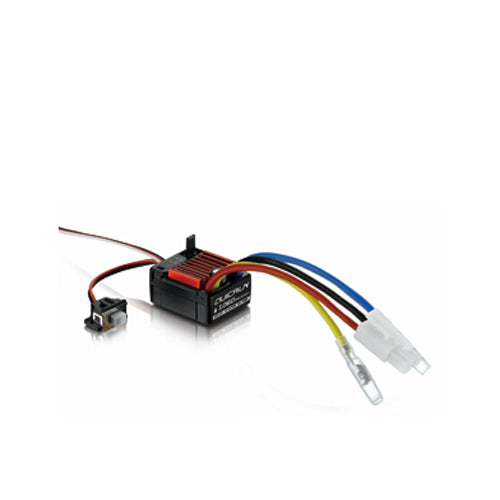

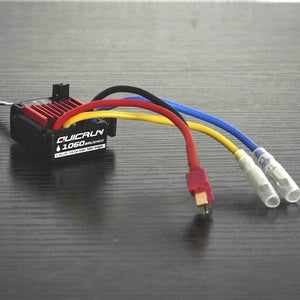

Hobby Wing QuicRun 1060 Waterproof Rock Crawler Brushed ESC (2-3S)

The HobbyWing QuicRun 1060 SBEC (T-Plug) is a durable, waterproof brushed ESC designed for 1/10 scale touring cars, crawlers, short-course trucks, monster trucks, boats, and tanks. Compact and reliable, it delivers smooth throttle response and dependable current handling for trail rigs, bashers, and scale builds alike.

Built for all weather performance, the 1060 features automatic throttle calibration, simple jumper based programming, and multiple built in protections to keep your electronics safe and consistent.

Whether you’re building a dependable crawler or upgrading a sport truck, the QuicRun 1060 is a proven, plug-and-play solution.

Key Features

• 60A Continuous Current with strong peak performance

• Fully Waterproof & Dustproof for all weather use

• T-Plug (Deans) Input Connector pre-installed

• Switch-Mode SBEC (5V/2A) for reliable receiver power

• Automatic Throttle Range Calibration

• Jumper-Based Setup for quick parameter changes

• Compact size with built in capacitor module

Running Modes

• Forward / Reverse / Brake

• Forward / Brake

• Forward / Reverse

Built-In Protection Systems

• Over-voltage protection

• Low-voltage cutoff (LiPo protection)

• Overheat protection

• Throttle signal loss protection

Motor & Battery Compatibility

For 2S LiPo or 6 Cell NiMH:

• 540 / 550 motor ≥ 12T

• Or RPM < 30,000 @ 7.2V

For 3S LiPo or 9 Cell NiMH:

• 540 / 550 motor ≥ 18T

• Or RPM < 20,000 @ 7.2V

 Technical Specifications

• Forward Continuous / Peak: 60A / 360A

• Reverse Continuous / Peak: 30A / 180A

• Resistance (Fwd/Rev): 0.001Ω / 0.002Ω

• Motor Type: Brushed Only

• BEC Output: 5V / 2A (Switch Mode)

• PWM Frequency: 1kHz

• Dimensions: 35.5 × 32.18 × 18mm

• Weight: 39g

• Cooling Fan: Not required

• Input Connector: T-Plug (Deans)
