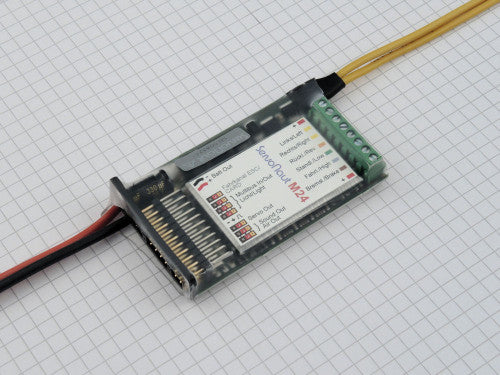

Servonaut M24 Speed Controller and Lighting System with Cruise Control

The Servonaut M24 is a premium truck speed controller and lighting module that combines powerful motor control with realistic light effects and advanced cruise control. As the successor to the M20+, it delivers smoother performance, expanded features, and reliable protection for scale model trucks.

Key Features:

• Integrated Cruise Control – Realistic driving experience with switchable cruise control.

• Advanced Lighting System – Includes xenon and light bulb effects, with 6 dedicated outputs:

  • Reverse light

  • Brake light

  • Indicators

  • Driving lights

  • Control outputs for kingpin lock servo and sound

• MultiBus Compatible – Seamlessly integrates into Servonaut systems.

• Motor Compatibility – Supports both conventional brushed motors and coreless motors.

• Adjustable via CARD or HS12 Radio – Fine-tune cruise control, acceleration, brake power, light effects, and more.

Technical Specifications:

• Supply Voltage: 7.2V–12V (2S or 3S LiPo compatible)

• Power Rating: 20A continuous

• Standby Current: 40mA

• BEC Receiver Supply: 5.3V / 4A S-BEC

• PWM Switching Frequency: 16kHz or 32kHz (ideal for coreless motors)

• Outputs: 6 special-purpose outputs (700mA contact rating each)

• Servo-Style Outputs: 1x servo, 1x sound

• Receiver Channels Required: 2

• Protections: Overcurrent, over-temperature, undervoltage

• Dimensions: 80 × 43 × 13 mm

Included in the Box:

• Servonaut M24 module

• Servo cables

• User manual
