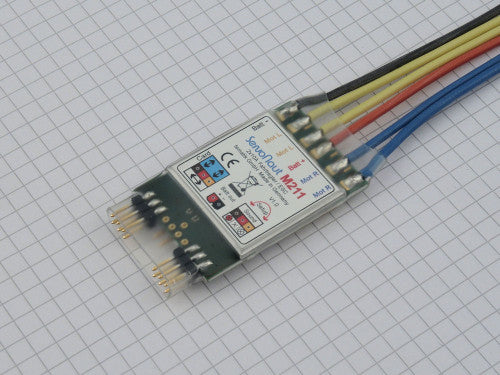

Servonaut M211 Dual Electronic Speed Controller

Servonaut M211 Dual Electronic Speed Controller
Designed for track drives, boats, and similar models, the Servonaut M211 offers reliable dual motor control with advanced features and protection.

Features:

• Dual motor control with 2 x 10A power rating

• Compatible with 7.2 to 14.4V power supplies (2S to 3S LiPo batteries)

• Integrated 1A BEC for powering receiver and servos

• PWM switching frequency: 16 kHz for smooth motor control

• Outputs for reversing light and brake light (700 mA contact rating)

• Control output compatible with Servonaut sound modules

• Additional power output for external equipment such as sound modules

• Comprehensive protections: overcurrent, temperature, and undervoltage

• Requires 2 receiver channels for operation

Technical Details:

• Dimensions: 60 x 32 x 8 mm³
