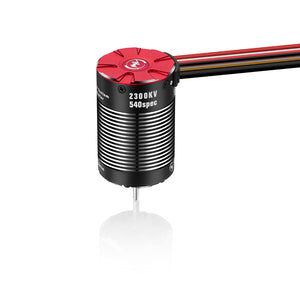

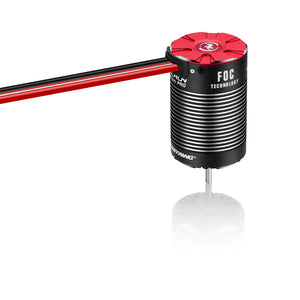

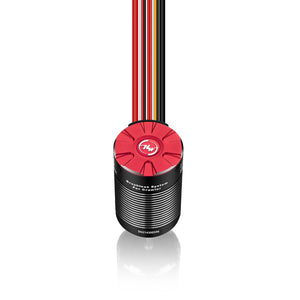

HobbyWing QuicRun Fusion Pro 2 in 1 FOC System (2300kv)

The QUICRUN Fusion PRO 2in1 FOC System (2300kV) delivers seamless power and refined throttle control in a cleaner, more compact design. With an integrated ESC and motor housed in a shortened 58mm body, this system creates more room in your chassis while maintaining serious performance.

Built for scale rigs that demand smooth low speed control and reliable torque, the Fusion PRO brings next level drivability to your 1/14 scale build.

Key Features:

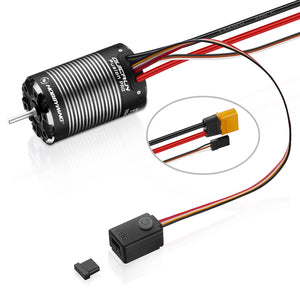

• Integrated 2-in-1 motor + ESC system for simplified wiring

• 6mm shorter overall length (58mm) for easier installation

• FOC (Field-Oriented Control) for ultra smooth throttle response

• IP67 waterproof and dustproof construction

• Designed for mud, sand, snow, ice, and all weather driving

• 13 adjustable ESC parameters for fine tuned performance

Drive Modes:

Supports multiple driving styles to match your build:

• Constant Speed Mode (Forward & Reverse)

• Normal Mode (Forward & Reverse with Brake)

• Normal Mode (Forward & Reverse without Constant Speed)

Whether you’re crawling technical terrain or dialing in scale realism, this system adapts to your needs.

Advanced Tuning Options:

Fine-tune your setup with 13 adjustable parameters, including:

• Maximum Braking Force

• Speed Fluency

• Start Mode (Punch)

• Throttle Midpoint Area

Precision control isn’t optional. It’s built in.

Specifications:

• Current Rating: 60A Continuous / 200A Peak

• Input Voltage: 2–3S LiPo / 6–9 Cell NiMH

• Motor Poles: 4

• Size: 37mm Diameter / 58mm Length

• Weight: 209g (including wires & connectors)

• BEC Output: 6V / 7.4V, 6A

Built for Builders Who Demand More

If you’re upgrading your 1/14 scale rig for smoother starts, better low speed modulation, and dependable all weather performance, the Fusion PRO is ready to work.

Bedrock Built rigs deserve reliable power systems.
