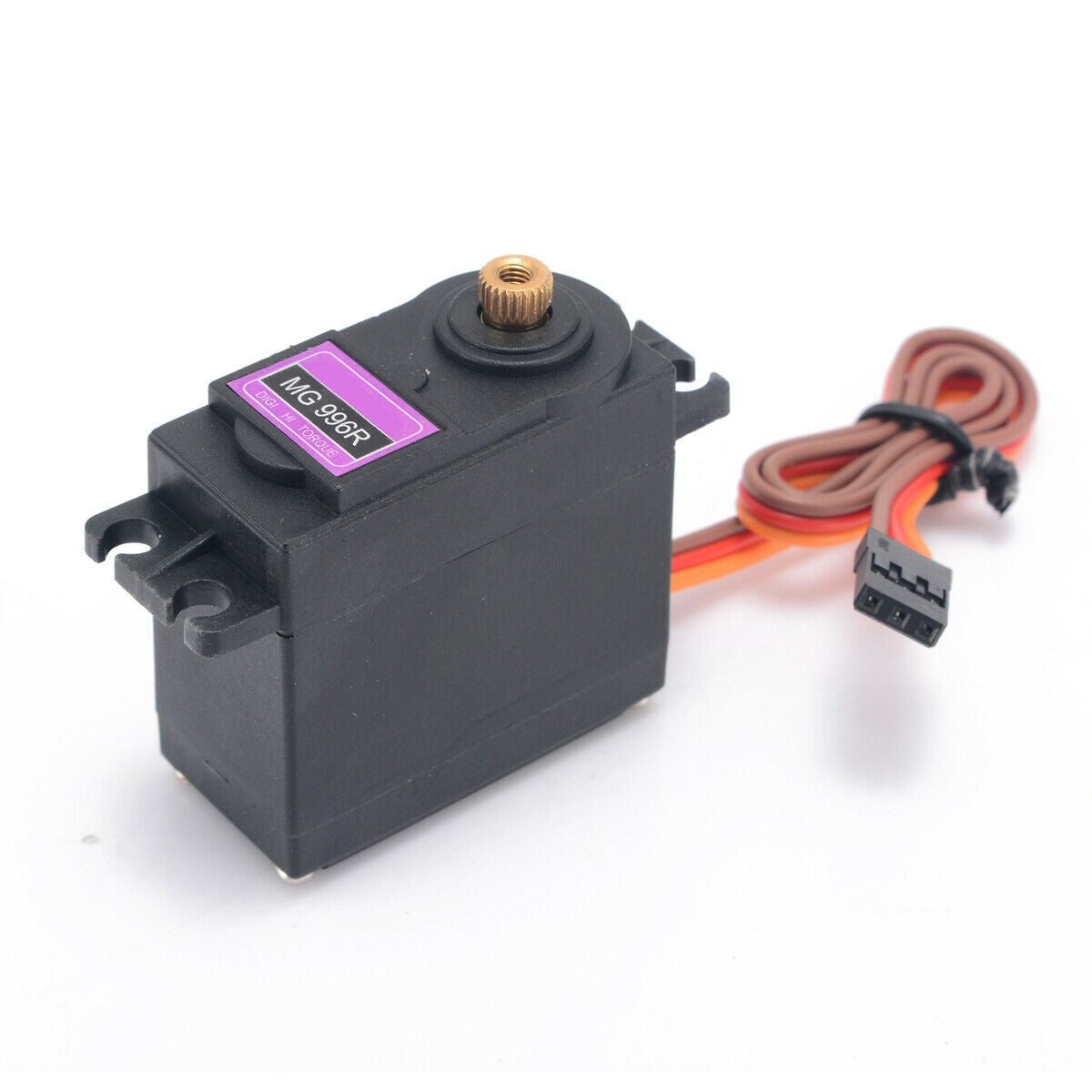

Bedrock RC Basic 55G Servo

The Bedrock RC Basic 55G Servo is a dependable, high torque digital servo designed for a wide range of RC applications. Featuring durable metal gears and improved electronics based on the proven MG996R platform, it delivers reliable performance for steering, shifting, winches, and custom functions.

A great option for both new builders and experienced hobbyists looking for a straightforward servo that gets the job done.

Features

• High torque digital servo
• Durable metal gear construction
• Double ball bearing design
• Improved centering and accuracy
• Approximately 120° rotation
• Compatible with most major receiver brands
• Includes servo arms and mounting hardware
• 30cm servo lead with standard 3-pin connector

Specifications

• Weight: 55g
• Dimensions: 40.7 x 19.7 x 42.9mm
• Operating Voltage: 4.8V - 7.2V
• Stall Torque:
  • 9.4 kg/cm @ 4.8V
  • 11 kg/cm @ 6.0V
• Speed:
  • 0.17 sec/60° @ 4.8V
  • 0.14 sec/60° @ 6.0V
• Running Current: 500mA - 900mA
• Stall Current: 2.5A @ 6V
• Dead Band Width: 5µs
• Operating Temperature: 0°C - 55°C

Fitment

Compatible with most standard RC receivers including Futaba, JR, Spektrum, Hitec, GWS, Corona, Berg, Blue Bird, and Blue Arrow systems.

What's Included

• Bedrock RC Basic 55G Servo
• Servo arms
• Mounting hardware
